Kaup Rollenklem

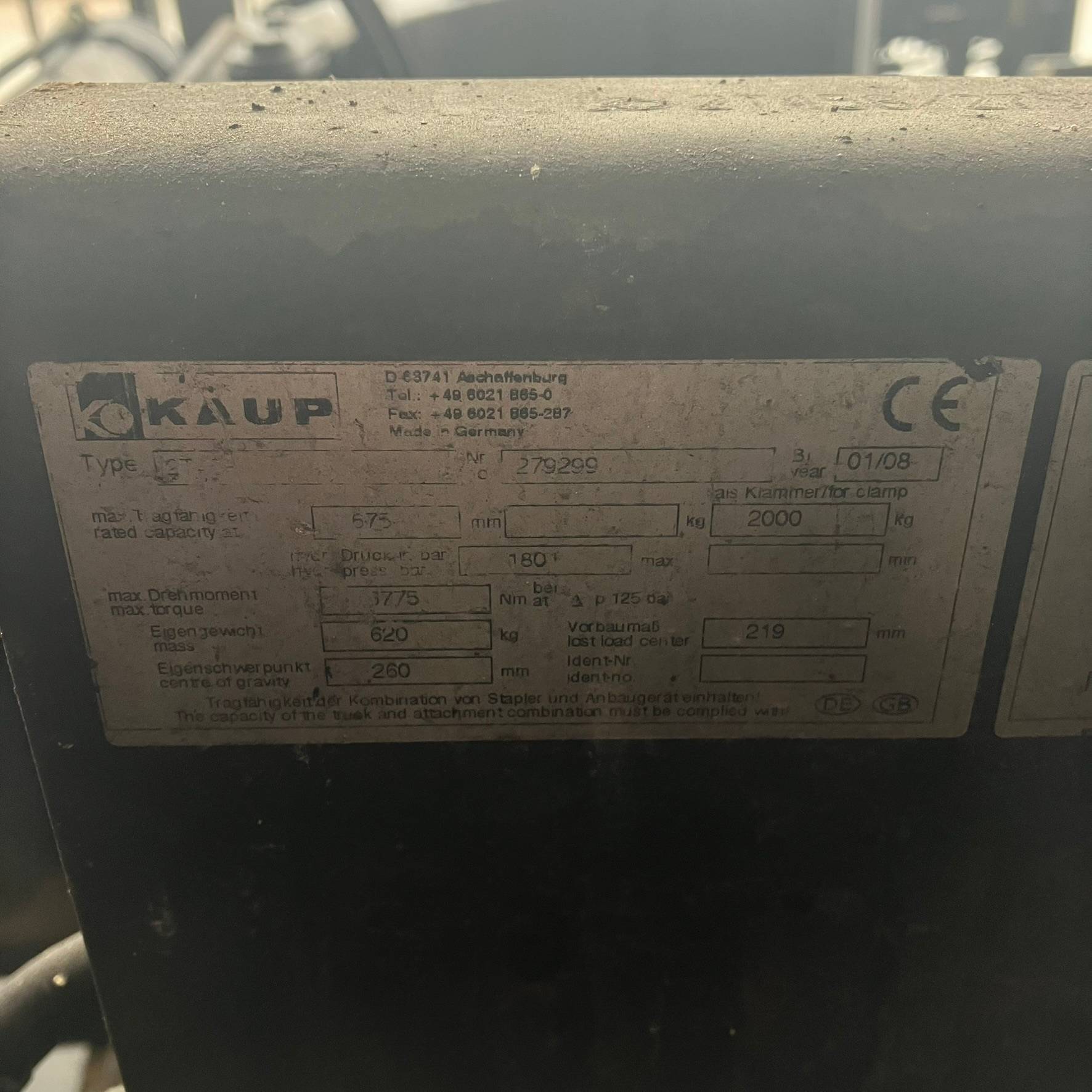

2T458 Kaup ROTATABLE ROLLER CLAW Rotation range 360° endless. Torque 6775 NM at 125 bar differential pressure. Overall width 770 mm. Opening range suitable for roller diameters 250 – 1,350 mm. Short arm hydraulically adjustable under a rotation angle of 45°. Pressure plate height 1,000 mm. Pressure plate length 300 mm. Pressure plates with rubber coating TR 70. Pressure plates are held in position by coil springs and protected by guard bars. Claw body protected by U-profiles, which also serve as support feet. Load capacity 2,000 kg at 675 mm LSP. Overall extension 219 mm. Center of gravity at 260 mm. Weight approx. 620 kg. Number of hydraulic functions: 2
